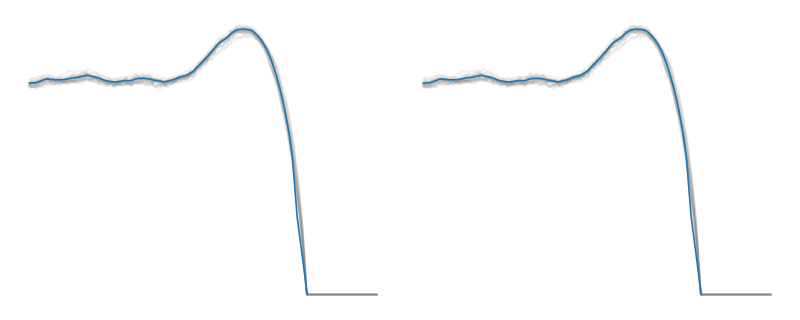

Basic package to analyze coating profile data with “heavy edge”.

Usage

HeavyEdge is designed to be used either as a command line program or as a Python module.

Command line

Command line interface provides pre-defined subroutines to handle profile data files. It can be invoked by:

heavyedge <command>

Refer to help message of heavyedge for list of commands and their arguments.

The command line interface defines specific file formats. Refer to Data file API section for detailed information.

Analysis parameters

Some analysis parameters can be passed by a configuration file in YAML forma. If a command takes such parameters, it always has an optional --config argument. The --config argument takes a path to config file where the parameters can be specified. Explicitly passed values take precedence over configuration file.

Python module

The Python module heavyedge provides functions and classes for Python runtime. Refer to Runtime API section for high-level interface.

Module reference

This section provides reference for heavyedge Python module.

Runtime API

High-level Python runtime interface.

heavyedge.api.prep(raw_file, sigma, std_thres, fill_value=0.0, z_thres=None, batch_size=None, logger=<function <lambda>>)

Preprocess raw profiles in the given file.

Parameters:

raw_fileheavyedge.RawProfileBase

Opened raw profile file.

sigmascalar

Standard deviation of Gaussian filter for smoothing.

std_thresscalar

Standard deviation threshold to detect contact point.

fill_valuescalar, default=0.0

Value to fill after the contact point. If None, does not fill the array.

z_thresscalar, optional

Z-score threshold to detect outliers. If not passed, outlier detection is not performed.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Yields:

Y_processed(batch_size, M) array

Preprocessed profiles.

Ls(batch_size,) array

Lengths of the preprocessed profiles.

names(batch_size,) array

Names of the preprocessed profiles.

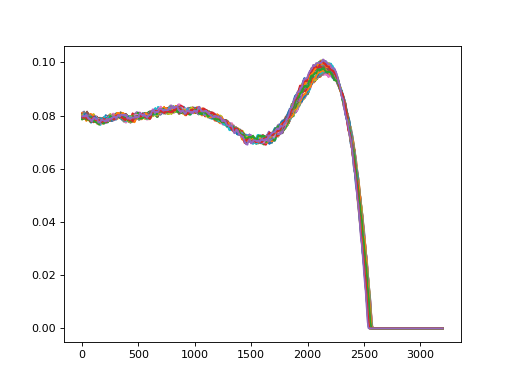

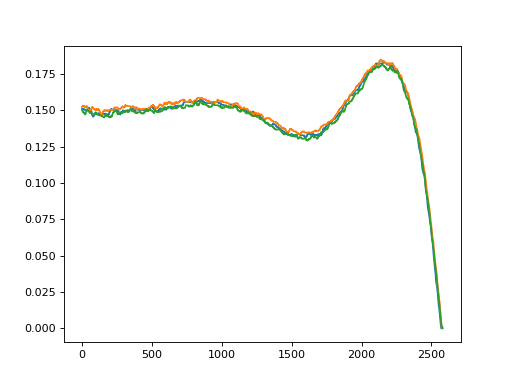

Examples

>>> from heavyedge import get_sample_path, RawProfileCsvs
>>> from heavyedge.api import prep
>>> raw = RawProfileCsvs(get_sample_path("Type3"))

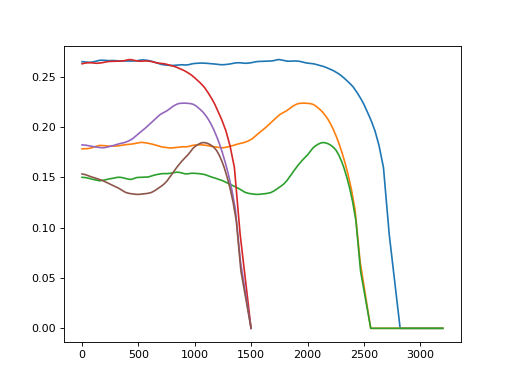

>>> Ys, Ls, _ = next(prep(raw, 32, 0.01, batch_size=3))
>>> import matplotlib.pyplot as plt
... for Y, L in zip(Ys, Ls):
...     plt.plot(Y[:L])

heavyedge.api.fill(file, fill_value, batch_size=None, logger=<function <lambda>>)

Fill profiles after the contact point.

Parameters:

fileheavyedge.ProfileData

Open h5 file.

fill_valuescalar

Value to fill after the contact point.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Yields:

Ys(batch_size, M) array

Filled profiles.

Ls(batch_size,) array

Lengths of the filled profiles.

names(batch_size,) array

Names of the filled profiles.

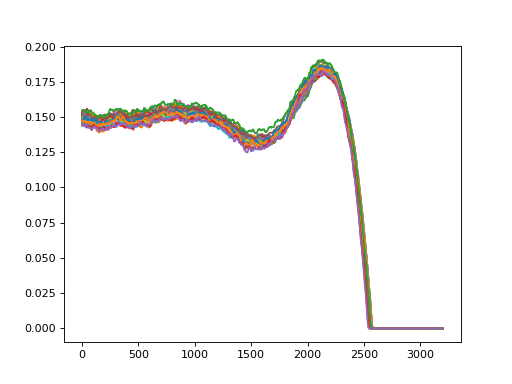

Examples

>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import fill

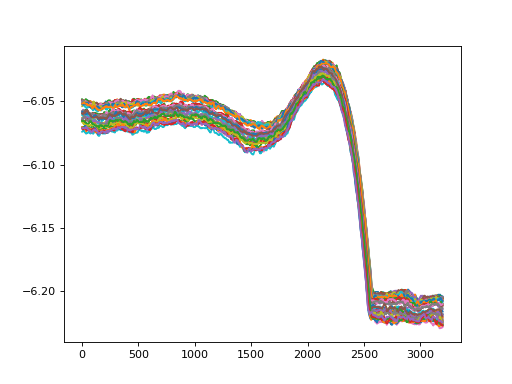

>>> with ProfileData(get_sample_path("Prep-Type1.h5")) as file:
...     Ys, _, _ = file[:]
...     Ys_filled, _, _ = next(fill(file, float("nan")))
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T, color="gray")
... plt.plot(Ys_filled.T)

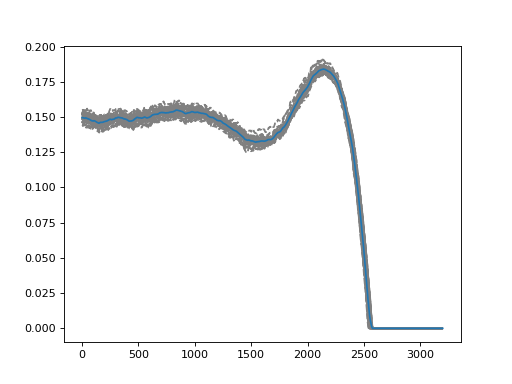

heavyedge.api.mean_euclidean(f, batch_size=None, logger=<function <lambda>>)

Compute arithmetic mean profile.

Parameters:

fheavyedge.ProfileData

Open h5 file of profiles.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Returns:

(M,) array

Average profile.

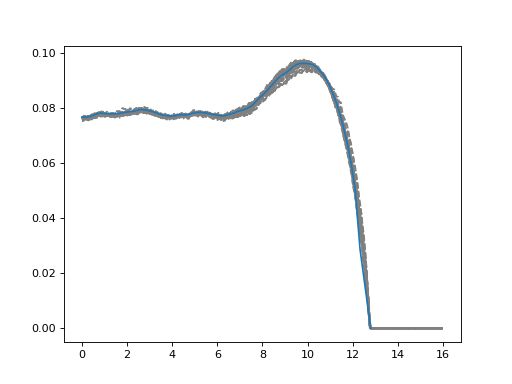

Examples

>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import mean_euclidean
>>> with ProfileData(get_sample_path("Prep-Type3.h5")) as f:
...     Ys, _, _ = f[:]
...     mean = mean_euclidean(f, batch_size=5)
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T, "--", color="gray")
... plt.plot(mean)

heavyedge.api.mean_wasserstein(f, grid_num, batch_size=None, logger=<function <lambda>>)

Compute mean profile by Fréchet mean with respect to Wasserstein metric.

Parameters:

fheavyedge.ProfileData

Open h5 file of profiles.

grid_numint

Number of grids to sample quantile functions.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Returns:

f_mean(M,) array

Average profile.

Lint

Length of the support of f_mean.

Notes

This function automatically fills the profiles with zero values after their contact points. In HeavyEdge 2.0, this feature will be removed and f will be required to contain profiles already filled with zero values.

Examples

>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import mean_wasserstein
>>> with ProfileData(get_sample_path("Prep-Type3.h5")) as f:
...     Ys, _, _ = f[:]
...     mean, L = mean_wasserstein(f, 100)
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T, "--", color="gray")
... plt.plot(mean[:L])

heavyedge.api.scale_area(f, batch_size=None, logger=<function <lambda>>)

Scale edge profile by area.

Parameters:

fheavyedge.ProfileData

Open h5 file of profiles.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Yields:

scaled(batch_size, M) array

Scaled edge profile.

Ls(batch_size,) array

Lengths of the scaled profiles.

names(batch_size,) array

Names of the scaled profiles.

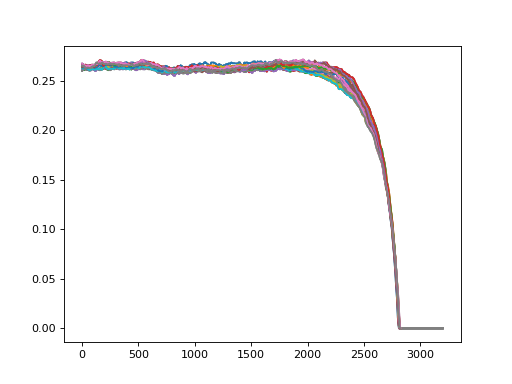

Examples

>>> import numpy as np
>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import scale_area
>>> with ProfileData(get_sample_path("Prep-Type3.h5")) as f:
...     gen = scale_area(f, batch_size=5)
...     Ys = np.concatenate([ys for ys, _, _ in gen], axis=0)
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T)

heavyedge.api.scale_plateau(f, batch_size=None, logger=<function <lambda>>)

Scale edge profile by plateau height.

Parameters:

fheavyedge.ProfileData

Open h5 file of profiles.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Yields:

scaled(batch_size, M) array

Scaled edge profile.

Ls(batch_size,) array

Lengths of the scaled profiles.

names(batch_size,) array

Names of the scaled profiles.

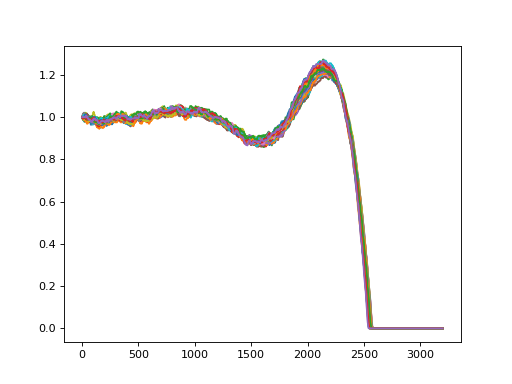

Examples

>>> import numpy as np
>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import scale_plateau
>>> with ProfileData(get_sample_path("Prep-Type3.h5")) as f:
...     gen = scale_plateau(f, batch_size=5)
...     Ys = np.concatenate([ys for ys, _, _ in gen], axis=0)
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T)

heavyedge.api.trim(f, width1, width2, batch_size=None, logger=<function <lambda>>)

Trim edge profile to a specific width.

This function matches the contact points of all profiles to a same location.

Parameters:

fheavyedge.ProfileData

width1int

Number of points on the left side of the profile.

width2int

Number of points on the right side of the profile.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Yields:

trimmed(batch_size, width) array

Trimmed edge profile.

Ls(batch_size,) array

Lengths of the scaled profiles.

names(batch_size,) array

Names of the scaled profiles.

Examples

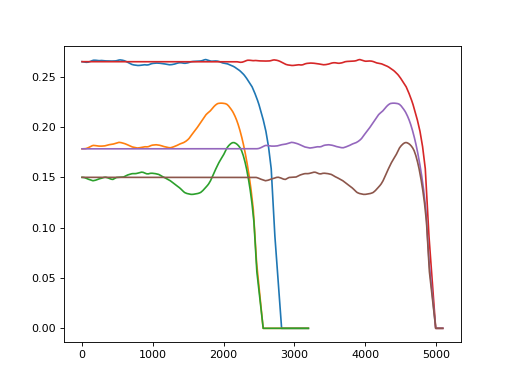

>>> import numpy as np
>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import trim
>>> with ProfileData(get_sample_path("MeanProfiles.h5")) as f:
...     Ys, _, _ = f[:]
...     gen = trim(f, 1500, 0, batch_size=10)
...     Ys_trim = np.concatenate([ys for ys, _, _ in gen], axis=0)
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T)
... plt.plot(Ys_trim.T)

heavyedge.api.pad(f, width1, width2, batch_size=None, logger=<function <lambda>>)

Pad edge profile to a specific width.

Parameters:

fheavyedge.ProfileData

width1int

Number of points on the left side of the profile.

width2int

Number of points on the right side of the profile.

batch_sizeint, optional

Batch size to load data. If not passed, all data are loaded at once.

loggercallable, optional

Logger function which accepts a progress message string.

Yields:

padded(batch_size, width) array

Padded edge profile.

Ls(batch_size,) array

Lengths of the padded profiles.

names(batch_size,) array

Names of the padded profiles.

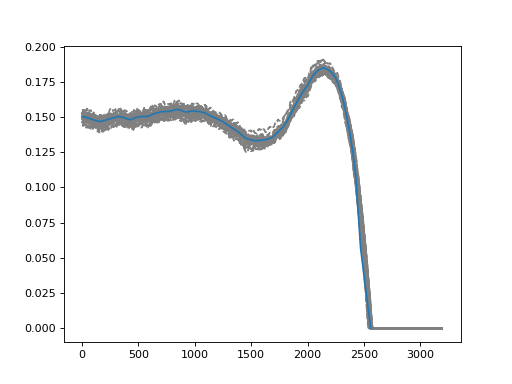

Examples

>>> import numpy as np
>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.api import pad
>>> with ProfileData(get_sample_path("MeanProfiles.h5")) as f:
...     Ys, _, _ = f[:]
...     gen = pad(f, 5000, 100, batch_size=10)
...     Ys_pad = np.concatenate([ys for ys, _, _ in gen], axis=0)
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T)
... plt.plot(Ys_pad.T)

Data file API

Data file I/O.

class heavyedge.io.RawProfileBase(path)

Base class to read raw profile data.

All profiles must have the same length.

Notes

self[key] returns a tuple of profile(s) and profile name(s).

class heavyedge.io.RawProfileCsvs(path)

Read raw profile data from a directory containing CSV files.

Directory structure:

rawdata/
├── profile1.csv
├── profile2.csv
└── ...

Parameters:

pathpathlike

Path to the directory containing the raw CSV files.

Notes

• Each CSV file must contain a single column of numeric values (no header).

• The order of profiles is determined by the sorted filenames.

• The profile name is derived from the filename stem.

Examples

>>> from heavyedge import get_sample_path, RawProfileCsvs
>>> profiles = RawProfileCsvs(get_sample_path("Type3"))
>>> import matplotlib.pyplot as plt
... for i in range(len(profiles)):
...     profile, _ = profiles[i]
...     plt.plot(profile)

class heavyedge.io.ProfileData(path, mode='r', **kwargs)

Preprocessed 1-dimensional profile data as hdf5 file.

Parameters:

pathpathlike

Path to the hdf5 file.

mode{‘r’, ‘w’, ‘r+’, ‘a’, ‘w-‘}

Mode to open the file.

kwargsdict

Optional arguments passed to h5py.File.

Notes

self[key] returns a tuple of full profile data, profile length(s) and profile name(s). If key is a sequence, it must be sorted in ascending order.

Examples

>>> from heavyedge import get_sample_path, ProfileData
>>> with ProfileData(get_sample_path("Prep-Type3.h5")) as data:
...     Ys, _, _ = data[:]
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T)

create(M, resolution, name=None)

Create datasets and write metadata.

Parameters:

Mint

Maximum length of profile data.

resolutionfloat

Spatial resolution of the profile data.

namestr, optional

Unique name to identify the dataset.

Returns:

obj

Returns the object itself.

name()

Unique name of the dataset.

Returns:

str

resolution()

Spatial resolution of the profile data.

Returns:

float

shape()

Shape of profile dataset.

Returns:

(N, M)

x()

Spatial coordinates.

Returns:

(M,) ndarray

write_profiles(profiles, lengths, names)

Append profiles data to file.

Parameters:

profiles(N, M) ndarray of float

1-dimensional profile.

lengths(N,) array of int

Number of data in profiles from reference point to contact point.

nameslist of str

Profile names.

profiles()

Yield profiles.

Profiles are cropped by the contact point.

Yields:

1-D ndarray

Low-level API

Various functions for edge profiles.

heavyedge.profile.preprocess(Ys, sigma, std_thres)

Preprocess raw profiles.

Parameters:

Ys(N, M) array

Array of N profiles.

sigmascalar

Standard deviation of Gaussian filter for smoothing.

std_thresscalar

Standard deviation threshold to detect contact point.

Returns:

Ys(N, M) array

Preprocessed profile data.

Ls(N,) array

Length of Y until the contact point.

Notes

Profiles undergo the following steps:

1. Profile direction is set so that the contact point is on the right hand side.

2. Contact point is detected, and set to have zero height.

Examples

>>> import numpy as np
>>> from heavyedge import get_sample_path, RawProfileCsvs
>>> from heavyedge.profile import preprocess
>>> raw = RawProfileCsvs(get_sample_path("Type3"))
>>> Ys = np.array([raw[i][0] for i in range(len(raw))])
>>> Ys_processed, Ls = preprocess(Ys, 32, 0.01)
>>> import matplotlib.pyplot as plt
... for Y, L in zip(Ys_processed, Ls):
...     plt.plot(Y[:L])

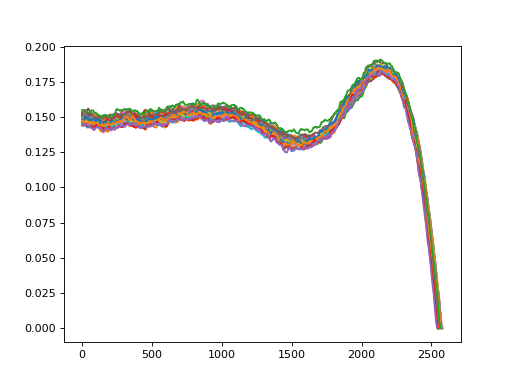

heavyedge.profile.fill_after(Ys, Ls, fill_value)

Fill arrays with a constant value after specified lengths.

The input array Ys is modified.

Parameters:

Ys(N, M) array

Array of N profiles.

Ls(N,) array

Length of each profile.

fill_valuescalar

Value to fill Ys.

Examples

>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.profile import fill_after
>>> with ProfileData(get_sample_path("Prep-Type2.h5")) as data:
...     x = data.x()
...     Ys, Ls, _ = data[:]
>>> fill_after(Ys, Ls, float("nan"))
>>> import matplotlib.pyplot as plt
... plt.plot(Ys.T)

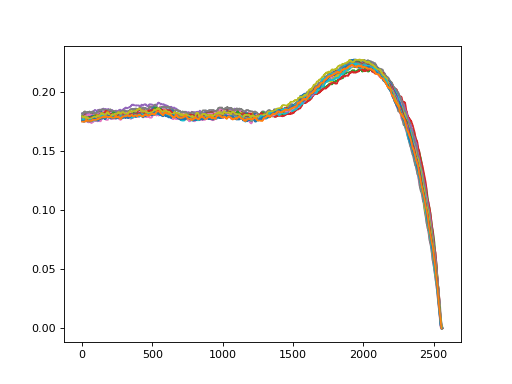

Wasserstein distance

Wasserstein-related functions.

heavyedge.wasserstein.quantile(x, fs, Ls, t)

Convert probability distributions to quantile functions.

Parameters:

x(M1,) ndarray

Coordinates of grids over which fs are measured.

fs(N, M1) ndarray

Empirical probability density functions. Each function must have zero values after each length in Ls.

Ls(N,) ndarray

Length of supports of each fs.

t(M2,) ndarray

Points over which the quantile function will be measured. Must be strictly increasing from 0 to 1.

Returns:

(N, M2) ndarray

Quantile functions* over t.

Examples

>>> import numpy as np
>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.wasserstein import quantile
>>> with ProfileData(get_sample_path("Prep-Type2.h5")) as data:
...     x = data.x()
...     Ys, Ls, _ = data[:]
>>> fs = Ys / np.trapezoid(Ys, x, axis=-1)[:, np.newaxis]
>>> t = np.linspace(0, 1, 100)
>>> Qs = quantile(x, fs, Ls, t)

heavyedge.wasserstein.wmean(x, fs, Ls, t)

Fréchet mean of probability distrubutions using Wasserstein metric.

Parameters:

x(M1,) ndarray

Coordinates of grids over which fs are measured.

fs(N, M1) ndarray

Empirical probability density functions. Each function must have zero values after each length in Ls.

Ls(N,) ndarray

Length of supports of each fs.

t(M2,) ndarray

Points over which the quantile function will be measured. Must be strictly increasing from 0 to 1.

Returns:

f_meanndarray

Fréchet mean of fs over x.

Lint

Length of the support of f_mean.

Examples

>>> import numpy as np
>>> from heavyedge import get_sample_path, ProfileData
>>> from heavyedge.wasserstein import wmean
>>> with ProfileData(get_sample_path("Prep-Type2.h5")) as data:
...     x = data.x()
...     Ys, Ls, _ = data[:]
>>> fs = Ys / np.trapezoid(Ys, x, axis=-1)[:, np.newaxis]
>>> f_mean, L = wmean(x, fs, Ls, np.linspace(0, 1, 100))
>>> import matplotlib.pyplot as plt
... plt.plot(x, fs.T, "--", color="gray")
... plt.plot(x[:L], f_mean[:L])

Segmented regression

Broken line regression with two segments.

Deprecated since version 1.5: This module will be removed in HeavyEdge 2.0, as it is no longer required by public API.

Plugin API

HeavyEdge provides the following entry points for plugins.

To list all installed plugins, run:

heavyedge --list-plugins

Command line extension

• Entry point group : heavyedge.commands

• Object : Module

Registers the subcommand to heavyedge command. To register your own command, write a module which invokes heavyedge.cli.register_command() and register it to this entry point.

All commands registered in the same entry point are grouped together when displayed by help message. Define PLUGIN_ORDER attribute in the module to control the displaying order.

To deprecate a command, use heavyedge.cli.deprecate_command() decorator.

heavyedge.cli.register_command(name, desc)

Decorator to register the command class for the argument parser.

Parameters:

namestr

The unique name of the command.

descstr

A short description of the command’s purpose.

See also

heavyedge.cli.Command

Examples

Decorate the class definition.

>>> from heavyedge.cli import Command, register_command
>>> @register_command("foo", "My command")
... class MyCommand(Command):
...     ...

class heavyedge.cli.Command(name, logger)

Sub-command for CLI interface.

Parameters:

namestr

Name of the sub-command.

loggerlogging.Logger

Logger to log the command run.

Examples

>>> class MyCommand(Command):
...     def add_parser(self, main_parser):
...         parser = main_parser.add_parser(self.name)
...         parser.add_argument("foo")
...     def run(self, args):
...         self.logger.info("Run my command")
...         print(args.foo)

property name

Name of the command for add_parser().

property logger

Logger for run().

abstractmethod add_parser(main_parser)

Add the command parser to main parser.

Parameters:

main_parserargparse._SubParsersAction

Subparser constructor having heavyedge.cli.ConfigArgumentParser as parser class.

abstractmethod run(args)

Run the command.

Parameters:

argsargparse.Namespace

class heavyedge.cli.ConfigArgumentParser(*args, **kwargs)

Argument parser which can read config file.

Use add_config_argument() to add an argument which can be read from the config file. When the first config argument is added, the --config option is automatically added.

Examples

>>> from heavyedge.cli import ConfigArgumentParser
>>> parser = ConfigArgumentParser("foo")
>>> _ = parser.add_config_argument("--bar")
>>> parser.print_help()
usage: foo [-h] [--config CONFIG] [--bar BAR]

options:
-h, --help       show this help message and exit
--config CONFIG  YAML file specifying config options.

config options:
--bar BAR

add_config_argument(name, **kwargs)

Add argument which can be read from the config file.

Parameters:

namestr

Name of the argument.

kwargsdict

Additional arguments passed to argparse.ArgumentParser.add_argument().

heavyedge.cli.deprecate_command(version, use_instead)

Decorator to mark a command as deprecated.

Deprecated commands are still accessible, but are not displayed in the help message. Additionally, warning is raised when the command is used.

Parameters:

versionstr

Version when the command is deprecated.

use_insteadstr

Other API which user should use.

Examples

Decorate the class definition.

>>> from heavyedge.cli import Command, register_command, deprecate_command
>>> @deprecate_command("1.5", "other command")
... @register_command("foo", "My command")
... class MyCommand(Command):
...     ...

Custom raw data type

• Entry point group : heavyedge.rawdata

• Object : Subclass of heavyedge.io.RawProfileBase

• Affected commands : heavyedge prep
